Availability:  Usually ships in 1 to 2 business days.

This is a direct replacement for model number QSPDVR04.

Turn your desktop PC into your own surveillance system with this Q-See PC based security solution. The QSDT4PCRC PCI DVR Card uses software H.264 compression for maximum storage with little loss of quality. This DVR Card stores video directly on your PC hard drive, records real-time video for accurate monitoring, and offers multiple recording options including motion detection. Not only can you monitor remotely over the internet via Internet Explorer, but also monitor via cell phones with Win Mobile Pro and Symbian OS and iPhones on 3G networks. This system supports up to 4 cameras, and has 1 audio feed from PC sound card.

Q-See solutions are the perfect answer for keeping your family secure, protecting your assets against theft, or managing your staff and resources more effectively. This easy to install complete security package has everything you need to setup a secure home or business. With Q-See, surveillance can be handled remotely - worldwide.

Features

PC based 4 channel DVR PCI card

H.264 Real-time software compression

Record amp; Display at 120 FPS (shared by cameras)

Recording frames adjustable from 1 - 30 FPS per camera

Connect up to 4 CCTV cameras on each card

Remote internet monitoring and networking

Remote surveillance, playback amp; PTZ control through IE Browser

Mobile Phone Surveillance (iPhone, Win Mobile Pro Symbian OS on 3G networks)

Various recording modes

Alarm triggered with sensor, motion, video loss, and HDD space shortage

You can zoom/capture/save/print/backup images

Search by time/date and recording events

1 PC Audio channel

Supports Auto-mail amp; Emap

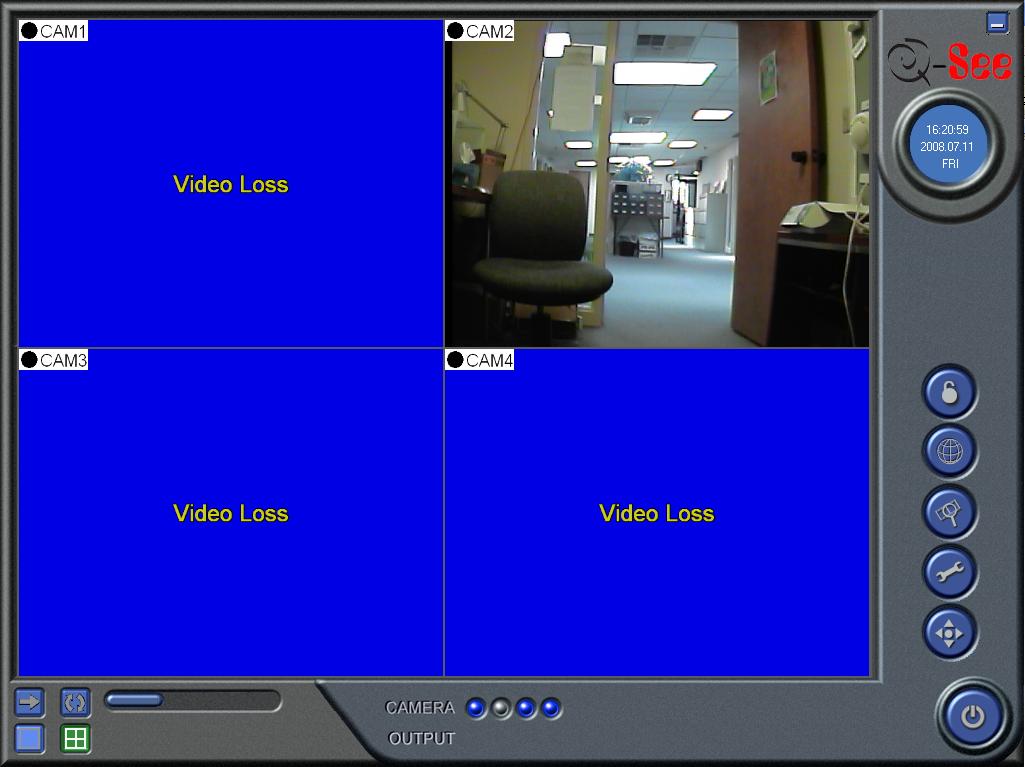

Screenshot of Included DVR Software
(Camera used in this demo was the Swann Super Night Owl):

Technical Specifications

Video Compression: H.264 (Software)
Video Inputs: 4 BNC
Video Output: NA
VGA Resolution: None
Display Resolution: 1024x768
Display Frame Rate (Shared): 120 FPS
Playback Resolution: 320x240
Record Frame Rate (Shared): 120 FPS
Record Options: Time, Alarm, Motion Detection and Manual
Search Options: Time, Event (Alarm or Motion Detection)
Hard Drive Number/Type Supported: Uses PC hard drive
Audio Inputs/Outputs: 1 on PC sound card
USB Port: Uses PC USB
USB Support: None
Ethernet Port: Uses PC Ethernet
Operating System Support: Win2000, WinXP, Vista
RS-485 Port (PTZ Support): Yes
External Alarm In/Out: 2/1
RS-485 Port (PTZ Support): Yes
Power Supply: NA
Power Consumption: NA
Operating Temperature/Humidity: NA
Dimensions: 0.75 x 6 x 4 in (19 x 153 x 102 mm)

What's Included:

1 x QSDT4PCRC H.264 Software Compression DVR PCI Card
1 x 4 Way Video Input Dongle
1 x SuperDVR software on Installation CD
1 x Product Manual
4 x BNC to RCA Adapters

Downloads

User Manual
